Low Noise High Efficiency Brush-Like Clean Sieve Trommel Screen Machine
Technical Parameters
| Model | Capacity(m³/h) | Drum Diameter(mm) | Drum length(mm) | Screen size | Deck | Power(kw) |
| GS-600 | 1-5 | 600 | 1500-3000 or customized | According to customer requirement | 1-5 | 3 |
| GS-800 | 1-10 | 800 | 3 |
| GS-1000 | 20-30 | 1000 | 3 |
| GS-1200 | 20-50 | 1200 | 3 |
| GS-1500 | 40-80 | 1500 | 5.5 |
| GS-1800 | 80-150 | 1800 | 7.5 |
| GS-2000 | 130-200 | 2000 | 11
|
Introduction
1. Roller or drum trommel screen is used for classification, sieving, cleaning and washing.
2. The features of Tongxin Drum trommel screen (roller sieve shaker) in Henan is has large capacity, smooth running, easy maintenance, longer service life and less blocking of the screen.
3. Widely used in quarry, coal, gold mine, chemical, metallurgy, construction, mineral-selecting industry, etc.
Features
1) Large size hopper for feeding.
2) Dust-proof device.
3) Pump for mineral ore washing, such as gold, sand, etc.
4) Belt conveyors and auto-clean systems for compost sifting.
Apply in Industry
| Chemical industry | Washing powder, resin powder, pigment, micro powder, paint, lemon powder, soda ash. |
| Rubber plastics abrasive ceramics industry | Quartz sand, alumina, mud, spray soil particles. |
| Food industry | Sugar, salt, alkali, monosodium glutamate, milk powder, soy milk, yeast, juice, soy sauce, vinegar, etc. |
| Paper industry | Coating, clay mud, black and white liquid, waste liquid, paper liquid, waste-water recovery. |
| Metallurgy industry | Titanium, zinc oxide, electromagnetic materials, metal powder, electrode powder. |
| Pharmaceutical industry | Traditional Chinese Medicine powder, Traditional Chinese Medicine liquid, western medicine powder, western medicine liquid, Traditional Chinese Medicine granules, etc.. |
Working Principle
Trommel utilizes mechanic methods, through numbers of paratactic screen bars to be the screen surface the drum rotates in use of the material self weight to screen, there are three connecting shafts above the screen surface inside the screen drum.
It can let the large size jump and then improve the screening efficiency with the help of slope of the surface to move the materials to go ahead, and at last to the crusher the fine materials smaller than the hole size will be screened.
Our Service
1. Professional engineers team can choose the right equipment for you;
2. We can provide thorough after-sales service to ensure the proper use of machine.
3. We can provide OEM customization.
4. We Provide video installation instructions;
5. We offer 24-hour online consulting service.
If you want to get more information of product, please contact us!
Product Tags:
|
|

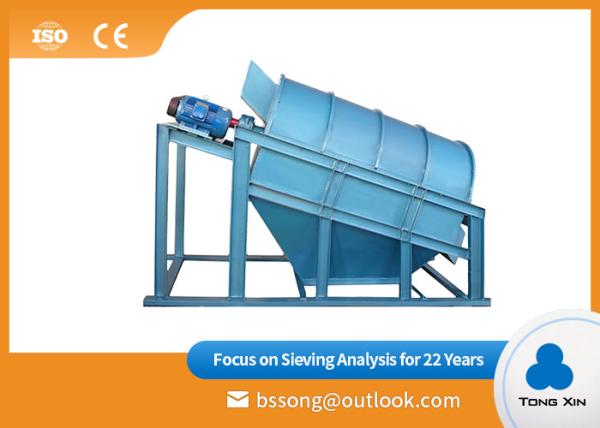

Brush Like Clean Sieve 15.5kw Rotary Trommel Screen Machine Images
|
