Mining Industry Ribbon Mixing Machine Dry Powder-Pasty Fluid Chemicals Drug
Introduction

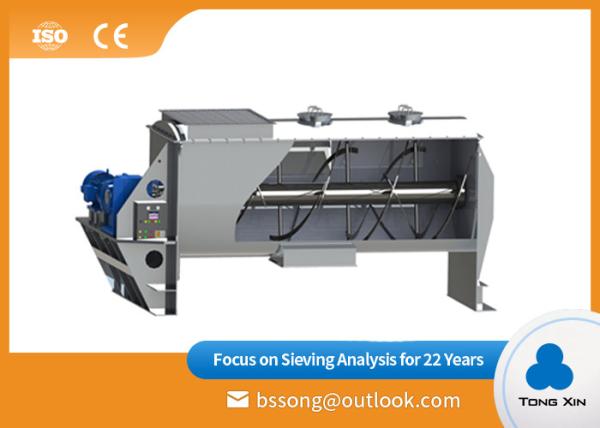

Horizontal ribbon mixer comprises of U-shape barrel, transmission parts and ribbon agitating blades which usually have double or triple layers with outside screw gathering material from side to center and inside screw transmitting the material from center to sides to form convection mix. It has a very good effect for mixing spice or dry powder with liquid.
Features
1. With CE certification;
2. High mixing speed and short uniform time. Mixing speed is around 8-20mins;
3. All stainless steel 304 material;
4. Full Mirror polished mixing tank inside, as well as ribbon and shaft;
5. Horizontal tank body, covers small area;
6. Bearing is on both ends of the mixer, the material is not easy to enter, repair rate is low;
Apply in Industry
1. Bonding Mortar: Masonry mortar, wall(ceramic) and floor tile adhesive mortar etc.
2. Decoration Mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar etc.
3. Protection Mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildew-proof mortar etc.
Working Principle
The outer and inner screw ribbon blade driven by high speed rotating shaft, mixing the material in maximum, inner screw ribbon blade forced the material to sides, outer screw ribbon blade forced sides material to inward,mix the materials back and forth.
In the same time, some material driven by screw ribbon do the radial motion, to form the convective mixing, so to achieve uniform mixing effect in relatively short time.
Technical Parameters
| Specification | Capacity (m³) | Loading coefficient | Speed (r/min) | Motor power (kw) | Boundary dimension (mm) | Weight (kg) |
| WLDH-0.1 | 0.1 | 0.4-0.6 | 62 | 3.0 | 1190*740*770 | 330 |
| WLDH-0.3 | 0.3 | 62 | 4.0 | 2030*630*980 | 600 |
| WLDH-0.5 | 0.5 | 62 | 7.5 | 2320*730*1130 | 900 |
| WLDH-1 | 1.0 | 49 | 11 | 2800*920*1320 | 1100 |
| WLDH-1.5 | 1.5 | 49 | 11 | 3180*1020*1550 | 1200 |
| WLDH-2 | 2.0 | 33 | 15 | 3310*1120*1640 | 2000 |
| WLDH-3 | 3.0 | 33 | 18.5 | 3750*1290*1820 | 2500 |
| WLDH-4 | 4.0 | 27 | 22 | 4220*1400*1990 | 3500 |
| WLDH-5 | 5.0 | 27 | 22 | 4220*1500*2100 | 4000 |
| WLDH-6 | 6.0 | 27 | 30 | 4420*1610*2260 | 4500 |
| WLDH-8 | 8.0 | 22 | 37 | 4700*2150*2470 | 5000 |
| WLDH-10 | 10.0 | 22 | 45 | 5520*2960*2720 | 6000 |
| WLDH-12 | 12.0 | 14 | 45 | 5720*3010*2840 | 7500 |
| WLDH-15 | 15.0 | 14 | 55 | 5840*3540*2940 | 9000 |
Our Advantage
The product of Tongxin company can be sent to the Quality and Technical Supervision Bureau for mesh detection, if not in line with the national standards for you free return and replacement. The follow picture is our long term cooperator.
Our Service
1. We Provide video installation instructions;
2. We offer 24-hour online consulting service;
3. 20 years production experience to ensure quality;
4. We have thorough data to ensure the quality.
If you want to get more information of product, please contact us!
