Instead Of Artificial Screening Sieve Machine Price Thickening Frame Industry
Description

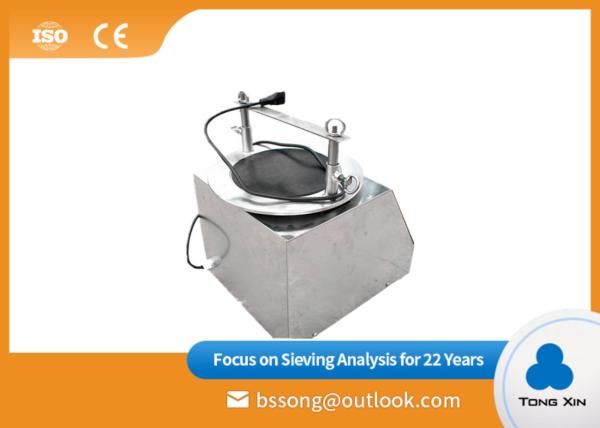

Standard electromagnetic lab test sieve is a regular automatic shutdown, guarantee the test repeatability and fully functional operation simple mechanical analysis apparatus.
Can be a kind of granular material precision at the same time to separate 2~8 period of particles. Can be used for slurry fineness and content of impurities of the analysis,the noise is small,light weight,the platform operation without fixed.
Features
1. High efficiency and design with exquisite and durable, any powder or liquid can be sifted;
2. Small size, no space, easy to move;
3. The sieve machine can place eight-layer test sieve (including the bottom of the sieve), which can accurately divide a kind of particle material into 2 ~ 7 particle size sections at the same time;
4. Automatic shutdown can be timed;
5. Ensure the repeatability of the experiment;
6. Complete functions and simpler operation;
7. Low noise and light weight;
8. Platform operation without fixing;
9. Adjustable amplitude.
Apply in Industry
Widely used in food, medicine, chemicals, abrasives, pigments, mining, metallurgy,geology, ceramics, and national defense industry. It is also used in the scientific research units, laboratories, testing labs, production and control to test, screen, grade, analyse the particles and debris content of solid, powder, slurry feed materials and so on.
Note: Can be customized according to customer's requirements.
Working Principle
The motor vibration and high frequency electromagnetic vibrator high frequency vibration, this kind of compound action, drives the test screen, the standard screen screen surface for high frequency vibration, make the material on the screen surface trembling, can do not stick to the net, conducive to high efficiency material screening.
Technical Parameters
| Number | Name | Units | Numerical Value |
| 1 | The diameter if sieve can be put in | mm | 200, 100, 75 |
| 2 | The acceptable number of layers of sieve | Layer | 8 |
| 3 | 200test sieve | Set | One set, should be purchased separately |
| 4 | Frequency | times/min | 3000 |
| 5 | Electromagnet | Power Voltage | W/V | 100w, 200w |
| Amplitude | mm | 1-5 adjustable at any time |
| 6 | Boundary Dimension | mm | Length; depth; height 480:500:450 |
| 7 | Sieve Machine Weight | kg | |
Packing
Our Advantage
Our company is a ISO9001:2000 certification enterprise, we cooperate with large domestic companies and some scientific research units. The follow picture is our long term cooperator.
Our Service
1. We provide detailed instruction an product information;
2. We provide 12 months quality warranty;
3. We have professional engineer team ensure to provide the most professional equipment;
4. Professional engineers team can choose the right equipment for you;
5. We can provide thorough after-sales service to ensure the proper use of machine.
6. We can provide OEM customization.
If you want to get more information of product, please contact us!
