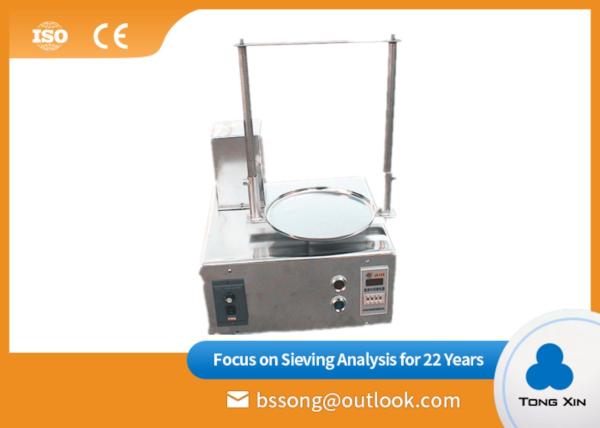

Motor Type Laboratory Sieve Shaker Metal Sugar Powder Stainless Steel BZS
Introduction
All laboratory analysis equipment work with an vibration motor drive. This drive produces a 3D throwing motion that moves the material to be sieved equally over the whole sieving surface.
Standard test sieve is the vibration sieve that has unique operation principle as circular motion.
In the screen plane slow motion at the same time, fast whirligig help clean up vertical vibration sieve eye, avoid the block. Equipped with automatic adjustment range from 10 to 60 minutes of time switch, when the end time and actuator automatic stop working.
Details
Features
1. Low noise,high efficiency;
2. High analyzing precision, low analytical error;
3. Vibration mode is easy to be adjusted.
Specification
Apply in Industry
| Chemical Industry | Resin, paint, pharmaceutical, medicine, cosmetics, eliminate fire agent, plastic powder, abrasive glass, etc. |
| Ceramic Industry | Abrasive materials, alumina, ceramic mud, clay mud, glass powder, refractory materials, quartz sand, PVC resin powder, citric acid, polyethylene powder, washing powder, etc. |
| The Food Industry | Sugar, gourmet powder, salt, juice, starch, milk powder, food, soyabean milk, egg powder, rice flour, soy sauce, fish meal, pineapple juice, etc. |
| Metallurgical Industry | Carbon black, cosolvent, activated carbon, pearl, etc. |
Working Principle
Standard screen machine by the vibration motor drives the upper vibration plate, again through the vibration plate to placed vibration place on the upper sieve box, and then by the mesh sieve box to check the material particles smaller than the screen top wire hole screening to the sieve box, so the screening.
Each layer test only stay in the same granularity material, to achieve the separation of different particle size and to determine the grain size composition of the material, makes the screen box of materials can be very effective filtering, grading, screening purposes.
Technical Parameters
| Name | Units | Parameters |
| Putting Sieve Layers | Layers | 1-5 |
| Putting Sieve Diameter | mm | φ200/φ100/φ75 |
| Screening Granularity | mm | 0.025-3 |
| Motor Power | kw | 0.12(0.15 general electric) |
| Noise | dB | Less than 50 |
| Amplitude | mm | 0-3 |
| Vibration Frequency | Times/min | 1400 |
| Size | L*W*H | 350*380*300+N*50 |
| Voltage | V | 220 |
| Frequency | Hz | 50 |
| Total Weight | kg | 35 |
Our Service
1. We offer 24-hour online consulting service;
2. 20 years production experience to ensure quality;
3. We have thorough data to ensure the quality;
4. We provide detailed instruction an product information;
5. We provide 12 months quality warranty.
If you want to get more information of product, please contact us!
